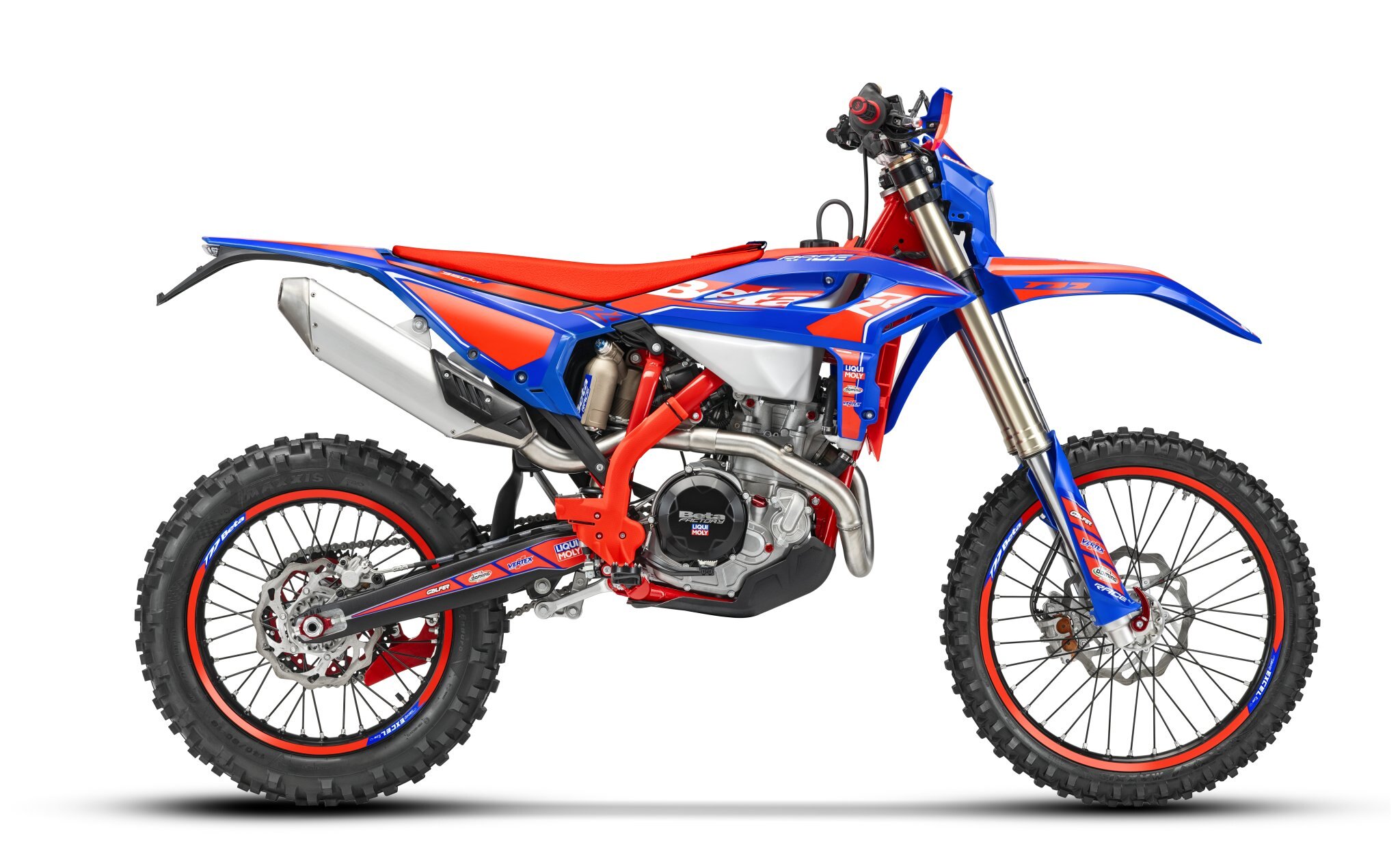

The RR Race 480 4T is pure power and uncompromising torque, enclosed in a racing vehicle that always maintains stability and precision. A bike designed for experienced riders who want maximum performance.
The 480 4-stroke single-cylinder engine is the most powerful in the Beta family. It offers impressive torque and tireless progression across all rev ranges. Perfect for those seeking speed and responsiveness on long, demanding stretches, transforming every acceleration into a burst of thrust and adrenaline.
With its unrivalled power, the 480 Race requires technique and determination. But the balanced structure, Kayaba suspension and electronic control systems such as dual mapping and TC allow you to tame it naturally and transform the power of the engine into stability, safety and speed that sets the benchmark.
ENGINE
TYPE Single cylinder, 4-stroke, liquid-cooled
BORE 100 mm
STROKE 60,8 mm
DISPLACEMENT 477,5 cc
COMPRESSION RATIO 12,48:1
VALVE TRAIN Dohc finger follower / 4 valve, intake titanium, exhaust steel
STARTER Electric starter
ACG Kokusan
SPARK PLUG NGK LKAR 8A-9
LUBRICATION 2 oil pumps
FUEL SYSTEM Elldor dual electronic injection
THROTTLE BODY Ø 42 mm – Synerject
CLUTCH Wet multi-disc clutch
PRIMARY DRIVE Z.23/76
TRANSMISSION 6 gears
FINAL TRANSMISSION Chain
ENGINE OIL SAE 10W/50 0,8 l. + SAE 10W/40 0,8 l.
CONSUMPTION l/100km 3,3
POLLUTION Co2 [g/km] 79
FRAME
Molybdenum steel with double cradle split above the exhaust port
WHEELBASE 1480 mm
MAX LENGHT 2180 mm
MAX WIDTH 830 mm
MAX HEIGHT 1275 mm
SEAT HEIGHT 950 mm
GROUND CLEARANCE 335 mm
FOOTREST HEIGHT 427 mm
DRY WEIGHT 107,5 kg (front 52,7 kg; rear 54,8 kg)
FUEL TANK CAPACITY 9,0 l
RESERVE 2,3 l
COOLING SYSTEM CAPACITY 1,4 l
FRONT SUSPENSION Hydraulic usd closecartridge fork with Ø 48 mm shaft
REAR SUSPENSION Monoshock with progressive compound lever
SHOCK ABSORBER STROKE 130 mm
FRONT WHEEL TRAVEL 300 mm
REAR WHEEL TRAVEL 287 mm
FRONT BRAKE Wave disc Ø260 mm and double-piston floating caliper
REAR BRAKE Wave disc Ø240 mm and single-piston floating caliper
FRONT RIM 21 x 1,6 – 36 holes
REAR RIM 18 x 2,15 – 36 holes
FRONT TYRE 90/90 – 21
REAR TYRE 140/80 -18
